Introduction

In this technical study, we are interested in the some types of regression problems, whose errors should be evaluated asymetrically. As an example, imagin you sell newspappers and that the cost of production of a newspapper is 0.5€, but you can sell it 2€. It implies that:

for every newspapper you do not sell, you loose 0.5€
for every newspapper that you miss selling, you loose 2€ - 0.5€ (of printing) = 1.5€

In this study, we will present and evaluate 3 different techniques to tackle this problem.

import math
import pandas as pd

from sklearn.ensemble.forest import RandomForestRegressor
from sklearn.metrics import mean_squared_error, mean_absolute_error
from sklearn.model_selection import train_test_split

import six
import sys
sys.modules['sklearn.externals.six'] = six
from skgarden import RandomForestQuantileRegressor

%matplotlib inline
import matplotlib.pyplot as plt
plt.rcParams["figure.figsize"] = (15, 5)

RANDOM_STATE = 42

/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/utils/deprecation.py:143: FutureWarning: The sklearn.ensemble.forest module is  deprecated in version 0.22 and will be removed in version 0.24. The corresponding classes / functions should instead be imported from sklearn.ensemble. Anything that cannot be imported from sklearn.ensemble is now part of the private API.
  warnings.warn(message, FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/utils/deprecation.py:143: FutureWarning: The sklearn.tree.tree module is  deprecated in version 0.22 and will be removed in version 0.24. The corresponding classes / functions should instead be imported from sklearn.tree. Anything that cannot be imported from sklearn.tree is now part of the private API.
  warnings.warn(message, FutureWarning)

# Define the different metrics that we will use
def rmse(y_test, y_pred):
    """
    Compte the Root Mean Square Error
    """
    return math.sqrt(mean_squared_error(y_test, y_pred))

def mae(y_test, y_pred):
    """
    Compte the Mean Absolute Error
    """
    return mean_absolute_error(y_test, y_pred)

def asym_loss(y_test, y_pred, over_loss, under_loss):
    """
    Compte the Mean Asymetric Error
    """
    y_diff = y_pred - y_test
    over_pred_loss = (y_diff[y_diff > 0]).sum() * over_loss
    under_pred_loss = (y_diff[y_diff < 0]).sum() * under_loss
    return over_pred_loss - under_pred_loss

df = pd.read_csv("data/weekly_newspaper.csv")
print(df.shape)
df.head()

(64177, 10)

	id	selling_date	selling_week	selling_month	selling_year	location	selling_store	sold_number
0	8559776	20041130	48	11	2004	44	452	7
1	8559767	20041130	48	11	2004	44	451	4
2	8559681	20041130	48	11	2004	44	1617	12
3	8559671	20041130	48	11	2004	44	1616	2
4	8559662	20041130	48	11	2004	44	1615	3

predictor_cols = [
    "selling_week",
    "selling_month",
    "selling_year",
    "location",
    "is_temporary",
    "is_holiday",
    "selling_store",
]

date_column = "selling_date"
target_column = "sold_number"

# Load the X dataset and y target train validation test
def split_X_y_train_test(
        df: pd.DataFrame(),
        predictor_cols: list,
        target_col: str,
        col_to_split_on : str,
        value_to_split_on: int):
    """
    Split X features and y target for train and test
    """
    df_train = df[df[col_to_split_on] < value_to_split_on]
    df_test = df[df[col_to_split_on] >= value_to_split_on]
    X_train = df_train[predictor_cols]
    y_train = df_train[target_col]
    X_test = df_test[predictor_cols]
    y_test = df_test[target_col]

    return X_train, y_train, X_test, y_test

# Do the split
X_train, y_train, X_test, y_test = split_X_y_train_test(
    df, predictor_cols, target_column,
    date_column, 20040101)

# Split again to get the validation and test
X_valid, X_test, y_valid, y_test = train_test_split(
    X_test, y_test, test_size=0.2, random_state=RANDOM_STATE)

OVER_LOSS = 0.5
UNDER_LOSS = 1.5

Straitforward model

Here, we present the results of the training of a model without taking into account the specificity of the asymetric error evaluation. Note that we will use a Random Forest Regressor model and which will be our “control” model.

# Train a RandomForestRegressor
model = RandomForestRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
model.fit(X_train, y_train)

y_train_pred = model.predict(X_train)

# Evaluation of the test dataset
y_valid_pred = model.predict(X_valid)

print("RMSE: ", rmse(y_valid, y_valid_pred))
print("MAE: ", mae(y_valid, y_valid_pred))
total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_valid)
print("Mean asymmetric money loss (compared to optimum): ", mean_amount)

RMSE:  2.5710727304516565
MAE:  1.6628447574934075
Mean asymmetric money loss (compared to optimum):  1.3819756144402426

# Evaluation of the validation dataset
y_test_pred = model.predict(X_test)

print("RMSE: ", rmse(y_test, y_test_pred))
print("MAE: ", mae(y_test, y_test_pred))
total_amount = asym_loss(y_test, y_test_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_test)
print("Mean asymmetric money loss (compared to optimum): ", mean_amount)

RMSE:  2.5204673713528654
MAE:  1.6410079780782227
Mean asymmetric money loss (compared to optimum):  1.3924949688564525

In what follows, we will see 3 different techniques to tackle the asymetric evaluation of the error:

Generalized increase of all predictions

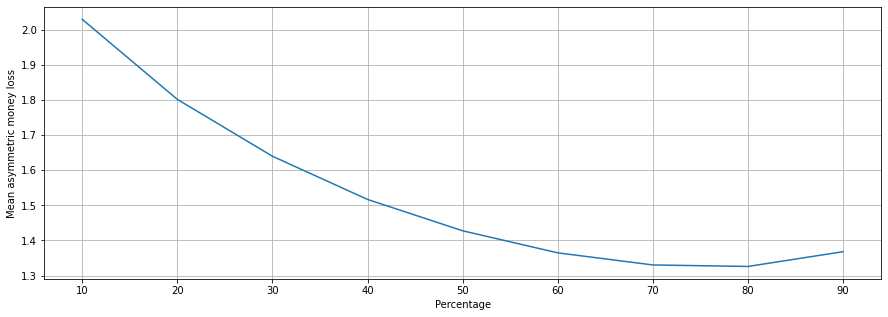

Selection by higher quantile in regression trees

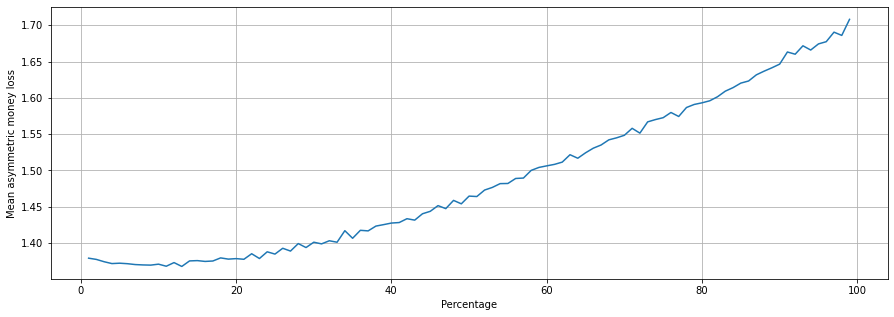

Asymmetric falsification of training data

We will explain each technique in what follows.

Technique 1: Generalized increase of all predictions

This technique is the easiest to understand and to implement. Its principle is straightforward: you systematically multiply the predicted value by a factor. And then you evaluate for each factor multiplication, the gain in the performances.

# First, train a model
model = RandomForestRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
model.fit(X_train, y_train)

RandomForestRegressor(n_estimators=10, random_state=42)

# Compute the asymetric loss (on the validation set) by varying the factor of multiplication
percentage_list = []
mean_asym_loss_list = []

for per_to_aug in range(1, 100):
    percentage_list.append(per_to_aug)

    rate_to_aug = 1 + (per_to_aug / 100)
    print("rate: ", rate_to_aug)

    y_valid_pred = model.predict(X_valid)
    y_valid_pred = y_valid_pred * rate_to_aug

    print("RMSE: ", rmse(y_valid, y_valid_pred))
    print("MAE: ", mae(y_valid, y_valid_pred))
    total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
    mean_amount = total_amount / len(y_valid)
    print("Mean asymmetric money loss: ", mean_amount)
    mean_asym_loss_list.append(mean_amount)
    print()

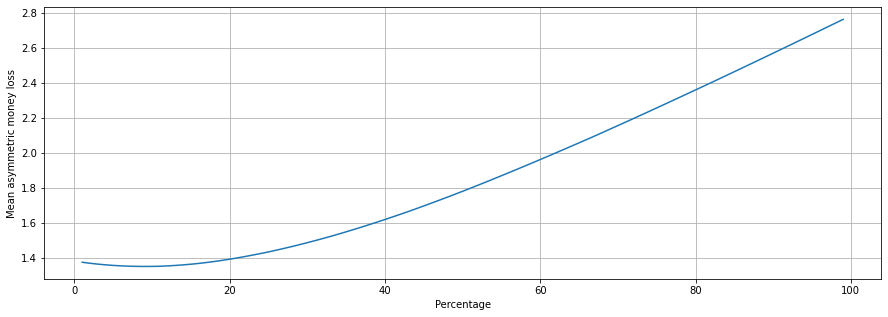

evol_loss_df = pd.DataFrame({
        "percentage": percentage_list,
        "mean_asym_loss": mean_asym_loss_list,
    })

rate:  1.01
RMSE:  2.5991208535396724
MAE:  1.679915714342949
Mean asymmetric money loss:  1.3755414949827822

rate:  1.02
RMSE:  2.6286678521975726
MAE:  1.6976866475126422
Mean asymmetric money loss:  1.3698073518454734

rate:  1.03
RMSE:  2.659663772526285
MAE:  1.7162380513851005
Mean asymmetric money loss:  1.3648536794109298

rate:  1.04
RMSE:  2.692058567052367
MAE:  1.7356437268391094
Mean asymmetric money loss:  1.360754278557937

rate:  1.05
RMSE:  2.7258023614765037
MAE:  1.7558421338951915
Mean asymmetric money loss:  1.3574476093070178

rate:  1.06
RMSE:  2.760845692729181
MAE:  1.7768554092650057
Mean asymmetric money loss:  1.3549558083698297

rate:  1.07
RMSE:  2.797139718378616
MAE:  1.7985265700243531
Mean asymmetric money loss:  1.3531218928221753

rate:  1.08
RMSE:  2.8346363980307387
MAE:  1.8209158030185144
Mean asymmetric money loss:  1.3520060495093351

rate:  1.09
RMSE:  2.8732886478371262
MAE:  1.844016916342991
Mean asymmetric money loss:  1.3516020865268097

rate:  1.1
RMSE:  2.9130504695899573
MAE:  1.8677690928174888
Mean asymmetric money loss:  1.3518491866943056

rate:  1.11
RMSE:  2.9538770561427206
MAE:  1.8920453374147759
Mean asymmetric money loss:  1.3526203549845912

rate:  1.12
RMSE:  2.9957248750634697
MAE:  1.9177055437156318
Mean asymmetric money loss:  1.3547754849784452

rate:  1.13
RMSE:  3.038551732516865
MAE:  1.9438118285071546
Mean asymmetric money loss:  1.3573766934629663

rate:  1.1400000000000001
RMSE:  3.082316819395436
MAE:  1.9705040343132285
Mean asymmetric money loss:  1.3605638229620385

rate:  1.15
RMSE:  3.1269807416922615
MAE:  1.997790784545328
Mean asymmetric money loss:  1.3643454968871365

rate:  1.16
RMSE:  3.172505537038529
MAE:  2.0258241446124585
Mean asymmetric money loss:  1.368873780647265

rate:  1.17
RMSE:  3.2188546792307218
MAE:  2.05452140869727
Mean asymmetric money loss:  1.3740659684250747

rate:  1.18
RMSE:  3.265993072452916
MAE:  2.0837826346838364
Mean asymmetric money loss:  1.3798221181046395

rate:  1.19
RMSE:  3.3138870367673845
MAE:  2.1136186232141445
Mean asymmetric money loss:  1.386153030327946

rate:  1.2
RMSE:  3.3625042863078907
MAE:  2.1439787614311645
Mean asymmetric money loss:  1.3930080922379642

rate:  1.21
RMSE:  3.4118139014697895
MAE:  2.1749968245041327
Mean asymmetric money loss:  1.4005210790039302

rate:  1.22
RMSE:  3.4617862962530803
MAE:  2.206432802697999
Mean asymmetric money loss:  1.4084519808907952

rate:  1.23
RMSE:  3.512393181781942
MAE:  2.238298101242628
Mean asymmetric money loss:  1.4168122031284225

rate:  1.24
RMSE:  3.5636075268988976
MAE:  2.270506421561442
Mean asymmetric money loss:  1.4255154471402343

rate:  1.25
RMSE:  3.6154035166150167
MAE:  2.3029800255310113
Mean asymmetric money loss:  1.4344839748028015

rate:  1.26
RMSE:  3.6677565090901987
MAE:  2.336503328992028
Mean asymmetric money loss:  1.4445022019568166

rate:  1.27
RMSE:  3.7206429917198935
MAE:  2.370169527182963
Mean asymmetric money loss:  1.4546633238407494

rate:  1.28
RMSE:  3.7740405368165755
MAE:  2.4041632360956062
Mean asymmetric money loss:  1.4651519564463917

rate:  1.29
RMSE:  3.8279277572956723
MAE:  2.4385738403921837
Mean asymmetric money loss:  1.4760574844359668

rate:  1.3
RMSE:  3.882284262705933
MAE:  2.473377789899605
Mean asymmetric money loss:  1.4873563576363864

rate:  1.31
RMSE:  3.9370906158828975
MAE:  2.50853690556063
Mean asymmetric money loss:  1.4990103969904098

rate:  1.32
RMSE:  3.992328290450541
MAE:  2.544020790343133
Mean asymmetric money loss:  1.5109892054659106

rate:  1.33
RMSE:  4.0479796293496655
MAE:  2.579851851961481
Mean asymmetric money loss:  1.523315190777257

rate:  1.34
RMSE:  4.1040278045314835
MAE:  2.6161368792027035
Mean asymmetric money loss:  1.536095141711478

rate:  1.35
RMSE:  4.160456777920509
MAE:  2.652804354414037
Mean asymmetric money loss:  1.5492575406158093

rate:  1.3599999999999999
RMSE:  4.217251263721601
MAE:  2.6897999244500066
Mean asymmetric money loss:  1.5627480343447782

rate:  1.37
RMSE:  4.274396692121329
MAE:  2.7270681205811713
Mean asymmetric money loss:  1.5765111541689405

rate:  1.38
RMSE:  4.331879174413061
MAE:  2.764653603001702
Mean asymmetric money loss:  1.59059156028247

rate:  1.3900000000000001
RMSE:  4.389685469558039
MAE:  2.802531246076851
Mean asymmetric money loss:  1.6049641270506163

rate:  1.4
RMSE:  4.447802952180312
MAE:  2.840659602776522
Mean asymmetric money loss:  1.6195874074432859

rate:  1.41
RMSE:  4.506219581982037
MAE:  2.879051685536225
Mean asymmetric money loss:  1.6344744138959872

rate:  1.42
RMSE:  4.564923874556113
MAE:  2.917640105812702
Mean asymmetric money loss:  1.6495577578654625

rate:  1.43
RMSE:  4.623904873565843
MAE:  2.9564333101703064
Mean asymmetric money loss:  1.6648458859160655

rate:  1.44
RMSE:  4.683152124255528
MAE:  2.9959186998020524
Mean asymmetric money loss:  1.6808261992408096

rate:  1.45
RMSE:  4.742655648251486
MAE:  3.035537510157049
Mean asymmetric money loss:  1.696939933288804

rate:  1.46
RMSE:  4.80240591960987
MAE:  3.0753358870580567
Mean asymmetric money loss:  1.7132332338828105

rate:  1.47
RMSE:  4.862393842065416
MAE:  3.1153018496293745
Mean asymmetric money loss:  1.729694120147126

rate:  1.48
RMSE:  4.922610727433865
MAE:  3.1555298191994026
Mean asymmetric money loss:  1.7464170134101522

rate:  1.49
RMSE:  4.98304827512014
MAE:  3.195977842969972
Mean asymmetric money loss:  1.7633599608737205

rate:  1.5
RMSE:  5.04369855268415
MAE:  3.2365584870473283
Mean asymmetric money loss:  1.7804355286440743

rate:  1.51
RMSE:  5.104553977416451
MAE:  3.277527197796612
Mean asymmetric money loss:  1.7978991630863568

rate:  1.52
RMSE:  5.165607298876638
MAE:  3.3186416501198175
Mean asymmetric money loss:  1.8155085391025598

rate:  1.53
RMSE:  5.22685158234827
MAE:  3.3599052274162413
Mean asymmetric money loss:  1.8332670400919826

rate:  1.54
RMSE:  5.288280193165371
MAE:  3.4012853257294715
Mean asymmetric money loss:  1.8511420620982102

rate:  1.55
RMSE:  5.349886781866817
MAE:  3.442933794342908
Mean asymmetric money loss:  1.8692854544046456

rate:  1.56
RMSE:  5.411665270136443
MAE:  3.4846510194636053
Mean asymmetric money loss:  1.8874976032183408

rate:  1.5699999999999998
RMSE:  5.473609837488248
MAE:  3.526482988860732
Mean asymmetric money loss:  1.905824496308466

rate:  1.58
RMSE:  5.5357149086576785
MAE:  3.5684167763440025
Mean asymmetric money loss:  1.9242532074847345

rate:  1.5899999999999999
RMSE:  5.597975141661596
MAE:  3.610547030267664
Mean asymmetric money loss:  1.9428783851013942

rate:  1.6
RMSE:  5.660385416491268
MAE:  3.6527916894324663
Mean asymmetric money loss:  1.9616179679591947

rate:  1.6099999999999999
RMSE:  5.722940824404215
MAE:  3.695172013080126
Mean asymmetric money loss:  1.980493215299853

rate:  1.62
RMSE:  5.785636657782559
MAE:  3.7376506107299443
Mean asymmetric money loss:  1.9994667366426693

rate:  1.63
RMSE:  5.84846840052691
MAE:  3.780219361509448
Mean asymmetric money loss:  2.018530411115172

rate:  1.6400000000000001
RMSE:  5.911431718956571
MAE:  3.8228685711517945
Mean asymmetric money loss:  2.0376745444505158

rate:  1.65
RMSE:  5.974522453188152
MAE:  3.865594885011783
Mean asymmetric money loss:  2.0568957820035028

rate:  1.6600000000000001
RMSE:  6.037736608966352
MAE:  3.9083456056539827
Mean asymmetric money loss:  2.0761414263387006

rate:  1.67
RMSE:  6.101070349921819
MAE:  3.951288431885753
Mean asymmetric money loss:  2.095579176263469

rate:  1.6800000000000002
RMSE:  6.164519990232602
MAE:  3.994625322368847
Mean asymmetric money loss:  2.1154109904395604

rate:  1.69
RMSE:  6.228081987666756
MAE:  4.038014041462458
Mean asymmetric money loss:  2.13529463322617

rate:  1.7
RMSE:  6.29175293698508
MAE:  4.081451046398151
Mean asymmetric money loss:  2.155226561854862

rate:  1.71
RMSE:  6.355529563683991
MAE:  4.124957680612662
Mean asymmetric money loss:  2.175228119762371

rate:  1.72
RMSE:  6.419408718059755
MAE:  4.168541048060525
Mean asymmetric money loss:  2.195306410903232

rate:  1.73
RMSE:  6.4833873695763025
MAE:  4.212216677460133
Mean asymmetric money loss:  2.215476963995838

rate:  1.74
RMSE:  6.547462601519844
MAE:  4.255967738077299
Mean asymmetric money loss:  2.2357229483060026

rate:  1.75
RMSE:  6.611631605924519
MAE:  4.299798223224032
Mean asymmetric money loss:  2.256048357145733

rate:  1.76
RMSE:  6.675891678754127
MAE:  4.34368260107474
Mean asymmetric money loss:  2.27642765868944

rate:  1.77
RMSE:  6.740240215325912
MAE:  4.387655192938655
Mean asymmetric money loss:  2.296895174246354

rate:  1.78
RMSE:  6.804674705963126
MAE:  4.431695600505694
Mean asymmetric money loss:  2.3174305055063904

rate:  1.79
RMSE:  6.86919273186388
MAE:  4.475772670679997
Mean asymmetric money loss:  2.338002499373691

rate:  1.8
RMSE:  6.933791961174514
MAE:  4.519887312880505
Mean asymmetric money loss:  2.358612065267198

rate:  1.81
RMSE:  6.998470145256361
MAE:  4.564028529133162
Mean asymmetric money loss:  2.3792482052128525

rate:  1.8199999999999998
RMSE:  7.063225115135465
MAE:  4.608228787141283
Mean asymmetric money loss:  2.3999433869139732

rate:  1.83
RMSE:  7.128054778125362
MAE:  4.65261094585191
Mean asymmetric money loss:  2.420820469317597

rate:  1.8399999999999999
RMSE:  7.192957114613622
MAE:  4.697045016052522
Mean asymmetric money loss:  2.4417494632112082

rate:  1.85
RMSE:  7.2579301750034215
MAE:  4.741531280585758
Mean asymmetric money loss:  2.4627306514374427

rate:  1.8599999999999999
RMSE:  7.322972076801823
MAE:  4.7860565379361075
Mean asymmetric money loss:  2.4837508324807898

rate:  1.87
RMSE:  7.388081001847015
MAE:  4.830608527204262
Mean asymmetric money loss:  2.504797745441943

rate:  1.88
RMSE:  7.453255193667118
MAE:  4.875213785607048
Mean asymmetric money loss:  2.525897927537727

rate:  1.8900000000000001
RMSE:  7.518492954963684
MAE:  4.919883434779957
Mean asymmetric money loss:  2.5470625004036336

rate:  1.9
RMSE:  7.5837926452132605
MAE:  4.964609532952861
Mean asymmetric money loss:  2.568283522269536

rate:  1.9100000000000001
RMSE:  7.649152678380952
MAE:  5.00937734712545
Mean asymmetric money loss:  2.589546260135123

rate:  1.92
RMSE:  7.714571520740071
MAE:  5.054183159561516
Mean asymmetric money loss:  2.6108469962641876

rate:  1.9300000000000002
RMSE:  7.780047688792442
MAE:  5.0990401046836675
Mean asymmetric money loss:  2.632198865079337

rate:  1.94
RMSE:  7.845579747284135
MAE:  5.143940370773008
Mean asymmetric money loss:  2.653594054861675

rate:  1.95
RMSE:  7.911166307311768
MAE:  5.188877524804043
Mean asymmetric money loss:  2.67502613258571

rate:  1.96
RMSE:  7.9768060245147225
MAE:  5.233836687938665
Mean asymmetric money loss:  2.69648021941333

rate:  1.97
RMSE:  8.042497597348936
MAE:  5.27881391090437
Mean asymmetric money loss:  2.717952366072034

rate:  1.98
RMSE:  8.108239765438118
MAE:  5.323803257952483
Mean asymmetric money loss:  2.7394366368131435

rate:  1.99
RMSE:  8.174031307998524
MAE:  5.368798630206477
Mean asymmetric money loss:  2.7609269327601362

# Plot the mean asymetric loss according the factor
plt.plot(evol_loss_df['percentage'], evol_loss_df['mean_asym_loss'])
plt.grid(True)
plt.xlabel('Percentage')
plt.ylabel('Mean asymmetric money loss')
plt.show()

png

# Determine the best multiplication factor
index_min = evol_loss_df.idxmin(axis = 0)["mean_asym_loss"]
best_percentage = evol_loss_df.iloc[index_min]['percentage']
best_percentage

9.0

# Compute the mean asymetric loss on the test dataset according the the best multiplication factor
rate_to_aug = 1 + (best_percentage / 100)

y_valid_pred = model.predict(X_valid)
y_valid_pred = y_valid_pred * rate_to_aug

print("RMSE: ", rmse(y_valid, y_valid_pred))
print("MAE: ", mae(y_valid, y_valid_pred))
total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_valid)
print("Mean asymmetric money loss (compared to optimum): ", mean_amount)

RMSE:  2.8732886478371262
MAE:  1.844016916342991
Mean asymmetric money loss (compared to optimum):  1.3516020865268097

We notice a reducing of the loss from 1.392€ to 1.351€.

Technique 2: Selection by higher quantile in regression trees

This technique is based on the the selection of a specific quantile instead of the median or average in the classical decision trees approach. We base on a library which implements this approach.

# Train a the Random Forest "Quantile" Regressor that extends the standart scikit implementation
model = RandomForestQuantileRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
model.fit(X_train, y_train)

/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)
/Users/nabil.belaid/anaconda3/lib/python3.6/site-packages/sklearn/tree/_classes.py:327: FutureWarning: The parameter 'presort' is deprecated and has no effect. It will be removed in v0.24. You can suppress this warning by not passing any value to the 'presort' parameter.
  FutureWarning)





RandomForestQuantileRegressor(random_state=42)

# Compute the mean asymetric loss (on the validation set) by varying the quantile
# Note that this specific implementation (at this current version) is slow
percentage_list = []
mean_asym_loss_list = []

#for i in range(1, 100):
for i in [10,20,30,40,50,60,70,80,90]:
    percentage_list.append(i)
    print("Quantile:", i)
    y_valid_pred = model.predict(X_valid, quantile=i)

    print("RMSE:", rmse(y_valid, y_valid_pred))
    print("MAE:", mae(y_valid, y_valid_pred))
    total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
    mean_amount = total_amount / len(y_valid)
    print("Mean asymmetric money loss (compared to optimum):", mean_amount)
    mean_asym_loss_list.append(mean_amount)
    print()


evol_loss_df = pd.DataFrame({
        "percentage": percentage_list,
        "mean_asym_loss": mean_asym_loss_list,
    })

Quantile: 10
RMSE: 2.648219751032231
MAE: 1.6774242579125813
Mean asymmetric money loss (compared to optimum): 2.029805467573433

Quantile: 20
RMSE: 2.54581791239489
MAE: 1.6207645853694155
Mean asymmetric money loss (compared to optimum): 1.8018224421383269

Quantile: 30
RMSE: 2.524632615895418
MAE: 1.6132646293573543
Mean asymmetric money loss (compared to optimum): 1.6398686586166447

Quantile: 40
RMSE: 2.5534726472838116
MAE: 1.638215909075281
Mean asymmetric money loss (compared to optimum): 1.516808071631148

Quantile: 50
RMSE: 2.639319434449881
MAE: 1.6962092990971038
Mean asymmetric money loss (compared to optimum): 1.427544909612238

Quantile: 60
RMSE: 2.7885374066281847
MAE: 1.7834933756640887
Mean asymmetric money loss (compared to optimum): 1.3647182932708428

Quantile: 70
RMSE: 2.995019384446774
MAE: 1.9062070757178657
Mean asymmetric money loss (compared to optimum): 1.3302375629426126

Quantile: 80
RMSE: 3.2451853046602555
MAE: 2.0673566385995157
Mean asymmetric money loss (compared to optimum): 1.3260045903432096

Quantile: 90
RMSE: 3.577361648551947
MAE: 2.2959163765355126
Mean asymmetric money loss (compared to optimum): 1.3680665364490538

# Plot the mean asymetric loss according the factor
plt.plot(evol_loss_df['percentage'], evol_loss_df['mean_asym_loss'])
plt.grid(True)
plt.xlabel('Percentage')
plt.ylabel('Mean asymmetric money loss')
plt.show()

png

# Determine the quantile that gives the best outcome on the validation dataset
index_min = evol_loss_df.idxmin(axis = 0)["mean_asym_loss"]
best_percentage = evol_loss_df.iloc[index_min]['percentage']
best_percentage

80.0

# Compute the mean asymetric loss on the test dataset on the best retained quantile
y_test_pred = model.predict(X_test, quantile=best_percentage)

print("RMSE: ", rmse(y_test, y_test_pred))
print("MAE: ", mae(y_test, y_test_pred))
total_amount = asym_loss(y_test, y_test_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_test)
print("Mean asymmetric money loss (compared to optimum): ", mean_amount)

RMSE:  3.1940852239410877
MAE:  2.032219712850274
Mean asymmetric money loss (compared to optimum):  1.327702358861495

We notice a reducing of the loss from 1.392€ to 1.327€.

Technique 3: Asymmetric falsification of training data

This approach is original. It consists in training a first model. Then, we “falsify” the training data by majorating the instances that the model under-estimated. We then evaluate the new performance on new data.

# First, train a model once
model = RandomForestRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
model.fit(X_train, y_train)

y_train_pred = model.predict(X_train)

# Evaluate the model after the first iteration of training
y_valid_pred = model.predict(X_valid)

print("RMSE: ", rmse(y_valid, y_valid_pred))
print("MAE: ", mae(y_valid, y_valid_pred))
total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_valid)
print("Mean asymmetric money loss (compared to optimum): ", mean_amount)

RMSE:  2.5710727304516565
MAE:  1.6628447574934075
Mean asymmetric money loss (compared to optimum):  1.3819756144402426

# Save the original train target
y_train_it_0 = y_train

# Apply different majorations to the underestimated instances and compute the mean asymetric loss (on the validation set)
percentage_list = []
mean_asym_loss_list = []

for per_to_aug in range(1, 100):
    percentage_list.append(per_to_aug)

    rate_to_aug = per_to_aug / 100
    print("rate: ", rate_to_aug)

    y_train = y_train_it_0
    to_be_aug = (y_train_pred - y_train)<0
    y_train = y_train * (1 + (rate_to_aug * to_be_aug))

    model = RandomForestRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
    model.fit(X_train, y_train)

    y_train_pred = model.predict(X_train)

    y_valid_pred = model.predict(X_valid)
    print("RMSE: ", rmse(y_valid, y_valid_pred))
    print("MAE: ", mae(y_valid, y_valid_pred))
    total_amount = asym_loss(y_valid, y_valid_pred, OVER_LOSS, UNDER_LOSS)
    mean_amount = total_amount / len(y_valid)
    print("Asymmetric money loss:", mean_amount)
    mean_asym_loss_list.append(mean_amount)
    print()

evol_loss_df = pd.DataFrame({
        "percentage": percentage_list,
        "mean_asym_loss": mean_asym_loss_list,
    })

rate:  0.01
RMSE:  2.5870904720413557
MAE:  1.673015967291056
Asymmetric money loss: 1.3791226102061174

rate:  0.02
RMSE:  2.606494660382465
MAE:  1.6837453970030811
Asymmetric money loss: 1.3774102778970883

rate:  0.03
RMSE:  2.6218258881483867
MAE:  1.6932820392962473
Asymmetric money loss: 1.3742183123250136

rate:  0.04
RMSE:  2.642492131237598
MAE:  1.7035349697543753
Asymmetric money loss: 1.3716849054207036

rate:  0.05
RMSE:  2.654724827171211
MAE:  1.7112059230203323
Asymmetric money loss: 1.3721986033103721

rate:  0.06
RMSE:  2.672568458878923
MAE:  1.7229453048464416
Asymmetric money loss: 1.3715189680483784

rate:  0.07
RMSE:  2.6853591094461535
MAE:  1.728821544262694
Asymmetric money loss: 1.370322909198374

rate:  0.08
RMSE:  2.6996301589694296
MAE:  1.738837859755158
Asymmetric money loss: 1.3698161410429406

rate:  0.09
RMSE:  2.7106204318928024
MAE:  1.7446898332467125
Asymmetric money loss: 1.3695575658425647

rate:  0.1
RMSE:  2.7310915189592557
MAE:  1.7565619691895447
Asymmetric money loss: 1.3708684227768706

rate:  0.11
RMSE:  2.7408869032086525
MAE:  1.760288352470273
Asymmetric money loss: 1.3680303114133565

rate:  0.12
RMSE:  2.7663157679156534
MAE:  1.7754009567102986
Asymmetric money loss: 1.373038289993174

rate:  0.13
RMSE:  2.754764653294931
MAE:  1.772607712497595
Asymmetric money loss: 1.3677306345011975

rate:  0.14
RMSE:  2.7877201472302344
MAE:  1.7898479485836345
Asymmetric money loss: 1.3753548954982888

rate:  0.15
RMSE:  2.793535822620104
MAE:  1.796517983785625
Asymmetric money loss: 1.3757676050675103

rate:  0.16
RMSE:  2.8223547695130886
MAE:  1.8035774899121455
Asymmetric money loss: 1.3746521962888587

rate:  0.17
RMSE:  2.822003330193142
MAE:  1.8100978542828234
Asymmetric money loss: 1.3752287892811836

rate:  0.18
RMSE:  2.8595668734528283
MAE:  1.8228718373478023
Asymmetric money loss: 1.3795067738091533

rate:  0.19
RMSE:  2.8467859145013326
MAE:  1.8243378572180313
Asymmetric money loss: 1.3778201106281174

rate:  0.2
RMSE:  2.879896168397999
MAE:  1.8362481001449151
Asymmetric money loss: 1.3785125169042114

rate:  0.21
RMSE:  2.8755434881406834
MAE:  1.8389383988134107
Asymmetric money loss: 1.377598609681664

rate:  0.22
RMSE:  2.9144402237851286
MAE:  1.8568175360041335
Asymmetric money loss: 1.3852369941422276

rate:  0.23
RMSE:  2.8908881019282355
MAE:  1.851120733022864
Asymmetric money loss: 1.3786539717592465

rate:  0.24
RMSE:  2.946843491367442
MAE:  1.8735641824865483
Asymmetric money loss: 1.3878965600179372

rate:  0.25
RMSE:  2.92487199722413
MAE:  1.8681538245774276
Asymmetric money loss: 1.3847660071974095

rate:  0.26
RMSE:  2.9692985429319214
MAE:  1.8887049892552261
Asymmetric money loss: 1.3927767111053933

rate:  0.27
RMSE:  2.9576484372999388
MAE:  1.8868824270153242
Asymmetric money loss: 1.3889161071932294

rate:  0.28
RMSE:  2.9999725622104596
MAE:  1.9056525462841942
Asymmetric money loss: 1.3992321473846754

rate:  0.29
RMSE:  2.994183132184814
MAE:  1.9029301445410434
Asymmetric money loss: 1.3937628991518083

rate:  0.3
RMSE:  3.030087236234648
MAE:  1.9209237128738077
Asymmetric money loss: 1.4011107756323538

rate:  0.31
RMSE:  3.025391707927127
MAE:  1.9226318654646326
Asymmetric money loss: 1.3988356558762758

rate:  0.32
RMSE:  3.0672088908226947
MAE:  1.9359368416583547
Asymmetric money loss: 1.4031145494359265

rate:  0.33
RMSE:  3.0450864637158848
MAE:  1.9354020039541588
Asymmetric money loss: 1.4011053080504536

rate:  0.34
RMSE:  3.1212038801610196
MAE:  1.9649270173402782
Asymmetric money loss: 1.4169935668036544

rate:  0.35
RMSE:  3.0897136662254563
MAE:  1.953013016399235
Asymmetric money loss: 1.4065472268465697

rate:  0.36
RMSE:  3.152678573405531
MAE:  1.9817606183561307
Asymmetric money loss: 1.4175118740515673

rate:  0.37
RMSE:  3.114995824235963
MAE:  1.9704966332329759
Asymmetric money loss: 1.4167215591736517

rate:  0.38
RMSE:  3.179598083084014
MAE:  1.9963150479741885
Asymmetric money loss: 1.4233264014107907

rate:  0.39
RMSE:  3.1499825456648853
MAE:  1.9911583078680997
Asymmetric money loss: 1.4253572867073814

rate:  0.4
RMSE:  3.198705212585427
MAE:  2.013948061942793
Asymmetric money loss: 1.427514307899194

rate:  0.41
RMSE:  3.2016189868243643
MAE:  2.0065583476164166
Asymmetric money loss: 1.428212906723323

rate:  0.42
RMSE:  3.2421953713204688
MAE:  2.033023359350414
Asymmetric money loss: 1.4334955392387845

rate:  0.43
RMSE:  3.237026841691846
MAE:  2.023023767144398
Asymmetric money loss: 1.4315501881531392

rate:  0.44
RMSE:  3.26242932184272
MAE:  2.0458263719533547
Asymmetric money loss: 1.4403155921864244

rate:  0.45
RMSE:  3.293132840803421
MAE:  2.051268402155242
Asymmetric money loss: 1.4436786915007225

rate:  0.46
RMSE:  3.311671067797607
MAE:  2.0724151473293198
Asymmetric money loss: 1.4515261530856072

rate:  0.47
RMSE:  3.317998013324506
MAE:  2.068011613838052
Asymmetric money loss: 1.4474034088445997

rate:  0.48
RMSE:  3.353343910231896
MAE:  2.0907154968889876
Asymmetric money loss: 1.4587334130890903

rate:  0.49
RMSE:  3.372930115060701
MAE:  2.087504744050908
Asymmetric money loss: 1.454010135971763

rate:  0.5
RMSE:  3.390990289309924
MAE:  2.110068096222193
Asymmetric money loss: 1.4646410686963909

rate:  0.51
RMSE:  3.415499615717422
MAE:  2.106239772748629
Asymmetric money loss: 1.4640623248684994

rate:  0.52
RMSE:  3.429529945372337
MAE:  2.133381643350729
Asymmetric money loss: 1.4729865357594758

rate:  0.53
RMSE:  3.5170208832106793
MAE:  2.1380760807219725
Asymmetric money loss: 1.4766246779956347

rate:  0.54
RMSE:  3.4841589331312273
MAE:  2.1563718560559075
Asymmetric money loss: 1.4818389128278604

rate:  0.55
RMSE:  3.5373755813678294
MAE:  2.160002330397784
Asymmetric money loss: 1.4820409679602198

rate:  0.56
RMSE:  3.5099763030152484
MAE:  2.1712702693807713
Asymmetric money loss: 1.488935380019994

rate:  0.57
RMSE:  3.59802505639007
MAE:  2.1837519237057834
Asymmetric money loss: 1.4895143265161794

rate:  0.58
RMSE:  3.5492488948428607
MAE:  2.1991915956527492
Asymmetric money loss: 1.5000880958104437

rate:  0.59
RMSE:  3.6837219234778362
MAE:  2.2119092533706195
Asymmetric money loss: 1.5041646784079532

rate:  0.6
RMSE:  3.584567387338056
MAE:  2.2149774999581417
Asymmetric money loss: 1.506314604626261

rate:  0.61
RMSE:  3.6851072553891573
MAE:  2.228469955910377
Asymmetric money loss: 1.5083670126100035

rate:  0.62
RMSE:  3.62060073746337
MAE:  2.2332525809098507
Asymmetric money loss: 1.5114723927507316

rate:  0.63
RMSE:  3.7444845764414003
MAE:  2.2519988023822677
Asymmetric money loss: 1.521652344007432

rate:  0.64
RMSE:  3.6811445840046115
MAE:  2.2499814516567183
Asymmetric money loss: 1.5168285539591309

rate:  0.65
RMSE:  3.754113039991949
MAE:  2.2701231483674063
Asymmetric money loss: 1.5242880320121026

rate:  0.66
RMSE:  3.699217889704551
MAE:  2.2798250337457775
Asymmetric money loss: 1.5306742271331428

rate:  0.67
RMSE:  3.8038340528202035
MAE:  2.2904207237200667
Asymmetric money loss: 1.5350501243946633

rate:  0.68
RMSE:  3.7777686656769935
MAE:  2.307736772372872
Asymmetric money loss: 1.5421522364158937

rate:  0.69
RMSE:  3.89377840952664
MAE:  2.3185820144973293
Asymmetric money loss: 1.544941423035595

rate:  0.7
RMSE:  3.799863276007917
MAE:  2.3200432378485307
Asymmetric money loss: 1.5484260054709673

rate:  0.71
RMSE:  3.9323475954476224
MAE:  2.339534457186458
Asymmetric money loss: 1.5580426925998023

rate:  0.72
RMSE:  3.8671407271377856
MAE:  2.3413240438107947
Asymmetric money loss: 1.5514059596876495

rate:  0.73
RMSE:  3.9722248759120133
MAE:  2.3620942684430313
Asymmetric money loss: 1.566915583118546

rate:  0.74
RMSE:  3.877486706990948
MAE:  2.366319920777866
Asymmetric money loss: 1.5700762183703458

rate:  0.75
RMSE:  4.008909048509568
MAE:  2.3807976202862835
Asymmetric money loss: 1.5726918432560895

rate:  0.76
RMSE:  4.000630691610003
MAE:  2.392181072858873
Asymmetric money loss: 1.5798562537836216

rate:  0.77
RMSE:  3.963956888401946
MAE:  2.394203069222724
Asymmetric money loss: 1.5743574315200766

rate:  0.78
RMSE:  4.005743299553302
MAE:  2.412218023195089
Asymmetric money loss: 1.5867111870227373

rate:  0.79
RMSE:  4.083327980120479
MAE:  2.428627445311681
Asymmetric money loss: 1.5909326627445706

rate:  0.8
RMSE:  4.0634041994626475
MAE:  2.4287538970378777
Asymmetric money loss: 1.5931666500514774

rate:  0.81
RMSE:  4.139169942233679
MAE:  2.439065117165703
Asymmetric money loss: 1.5959835402942406

rate:  0.82
RMSE:  4.053772779532673
MAE:  2.4447812876689263
Asymmetric money loss: 1.6015357662982335

rate:  0.83
RMSE:  4.201314130187783
MAE:  2.4711644142278644
Asymmetric money loss: 1.609234332975459

rate:  0.84
RMSE:  4.159953499550572
MAE:  2.4766867728113877
Asymmetric money loss: 1.6141072276643729

rate:  0.85
RMSE:  4.213277013538828
MAE:  2.4924918238745497
Asymmetric money loss: 1.6203376123070061

rate:  0.86
RMSE:  4.216073650870541
MAE:  2.5013596487978917
Asymmetric money loss: 1.6232425997512192

rate:  0.87
RMSE:  4.274112915202994
MAE:  2.5218697807888435
Asymmetric money loss: 1.6317187268618893

rate:  0.88
RMSE:  4.220184176394705
MAE:  2.524881033768329
Asymmetric money loss: 1.6367902390645286

rate:  0.89
RMSE:  4.344596471469305
MAE:  2.5355308186080325
Asymmetric money loss: 1.641423527326135

rate:  0.9
RMSE:  4.295377535856151
MAE:  2.55697629497961
Asymmetric money loss: 1.6464723739657439

rate:  0.91
RMSE:  4.415168301025458
MAE:  2.577483713534998
Asymmetric money loss: 1.6631891319248324

rate:  0.92
RMSE:  4.359597313501919
MAE:  2.587064131994596
Asymmetric money loss: 1.660153081560961

rate:  0.93
RMSE:  4.450551291928033
MAE:  2.596248294999657
Asymmetric money loss: 1.6717325204561886

rate:  0.94
RMSE:  4.383965117763274
MAE:  2.600494765073465
Asymmetric money loss: 1.6658991485135397

rate:  0.95
RMSE:  4.488687339705972
MAE:  2.61470138600579
Asymmetric money loss: 1.6743369442824214

rate:  0.96
RMSE:  4.44695764374281
MAE:  2.6285588012723107
Asymmetric money loss: 1.6773828873486167

rate:  0.97
RMSE:  4.610565068335496
MAE:  2.648156032646413
Asymmetric money loss: 1.6905168060135767

rate:  0.98
RMSE:  4.477168008839081
MAE:  2.6457387523339575
Asymmetric money loss: 1.6860502683573784

rate:  0.99
RMSE:  4.714903764423769
MAE:  2.6861660173074746
Asymmetric money loss: 1.7081660681340083

# Plot the mean asymetric loss according the different majorations
plt.plot(evol_loss_df['percentage'], evol_loss_df['mean_asym_loss'])
plt.grid(True)
plt.xlabel('Percentage')
plt.ylabel('Mean asymmetric money loss')
plt.show()

png

# Determine the best rate, that gives the best mean asymetric loss
index_min = evol_loss_df.idxmin(axis = 0)["mean_asym_loss"]
best_percentage = evol_loss_df.iloc[index_min]['percentage']

rate_to_aug = best_percentage / 100
print("rate: ", rate_to_aug)

y_train = y_train_it_0
to_be_aug = (y_train_pred - y_train)<0
y_train = y_train * (1 + (rate_to_aug * to_be_aug))

model = RandomForestRegressor(n_estimators=10, criterion="mse", random_state=RANDOM_STATE)
model.fit(X_train, y_train)

y_train_pred = model.predict(X_train)

rate:  0.13

# Compute the mean asymetric loss on the test dataset on the best rate
y_test_pred = model.predict(X_test)
print("RMSE: ", rmse(y_test, y_test_pred))
print("MAE: ", mae(y_test, y_test_pred))
total_amount = asym_loss(y_test, y_test_pred, OVER_LOSS, UNDER_LOSS)
mean_amount = total_amount / len(y_test)
print("Asymmetric money loss:", mean_amount)

RMSE:  2.6556963254081474
MAE:  1.7179912834114055
Asymmetric money loss: 1.3778882222296251

We notice a reducing of the loss from 1.392€ to 1.377€.

Summary and outlooks

As a conclusion, we can say that there are different strategies to tackle the asymetric evaluation of the error. Note however, note that some techniques are greedy and the gain does not justify their utilization.

Here is a summary about the performances of the different techniques:

	Mean Asymetric Loss	Time complexity	Implementation complexity
Generalized increase of all predictions	(+)	(++)	(++)
Selection by higher quantile in regression trees	(++)	(-)	(-)
Asymmetric falsification of training data	(+)	(–)	(+)

As outlooks, we site the following:

Implement the asymmetric cost function in scikit-learn
Use blending of techniques
Run a second iteration of the falsification technique
Use a “Mirror” falsification (on the other side)
